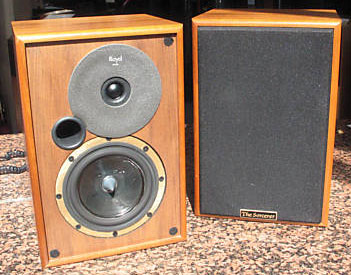

Higher end, near field monitors. Same later variants appear to have the tweeter mounted below the bass driver i.e. the cabinet has seemingly been turned upside down. Possibly a forerunner to the SE model. The SE was a big step up as it was fitted with the same bass driver as the Revelation range.
|Year of Release|
|Dimensions (WxHxD)||203mm x 305mm x 185mm|
|Recommend Amplifier Power||30 to 100 Watts|
|Sensitivity||86 dB 1 watt @ 1 metre|
|Nominal Impedance||8 ohms|

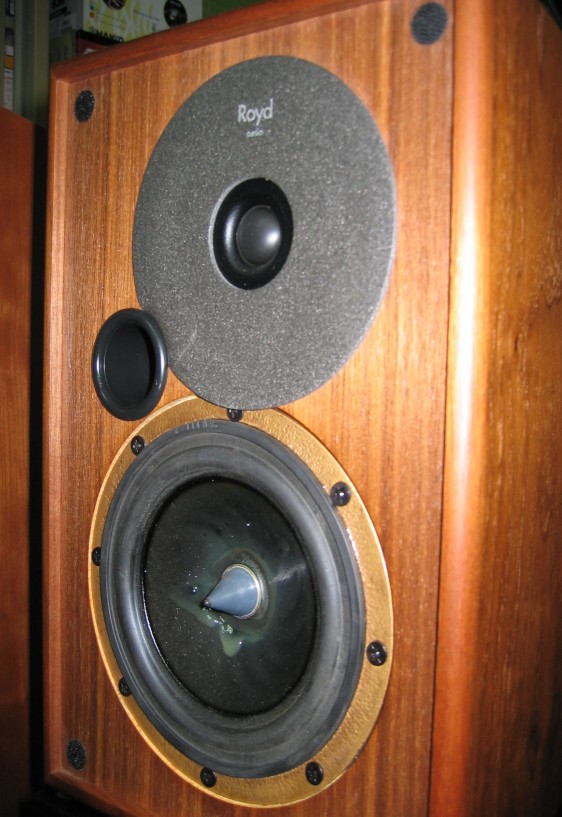

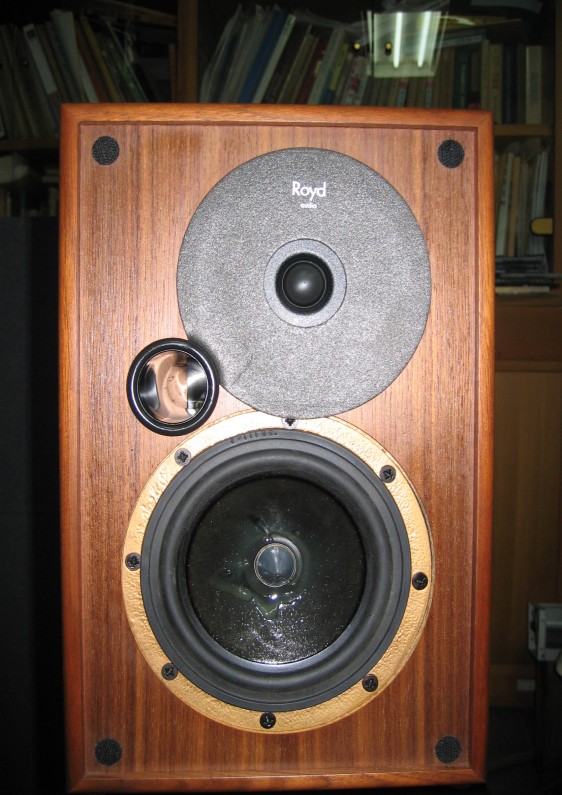

|Drive Units||1 Royd 5" cast chassis bass/mid unit and 1 Royd 19mm dome tweeter with secondary chamber|
|Crossover Frequency||3 KHz|
|Bass Resonance Frequency||43 Hz|
|Frequency Range||35 Hz to 20KHz|
|Finishes||Walnut, Black Ash or Cherry veneer|
Retailed for about £600 in 1995. Todays price is hard to place due to rarity, but a pair with half knackered bass drivers fetched £102 on ebay April ’09, whilst a pair in very good condition went for £260 in June ’11.
