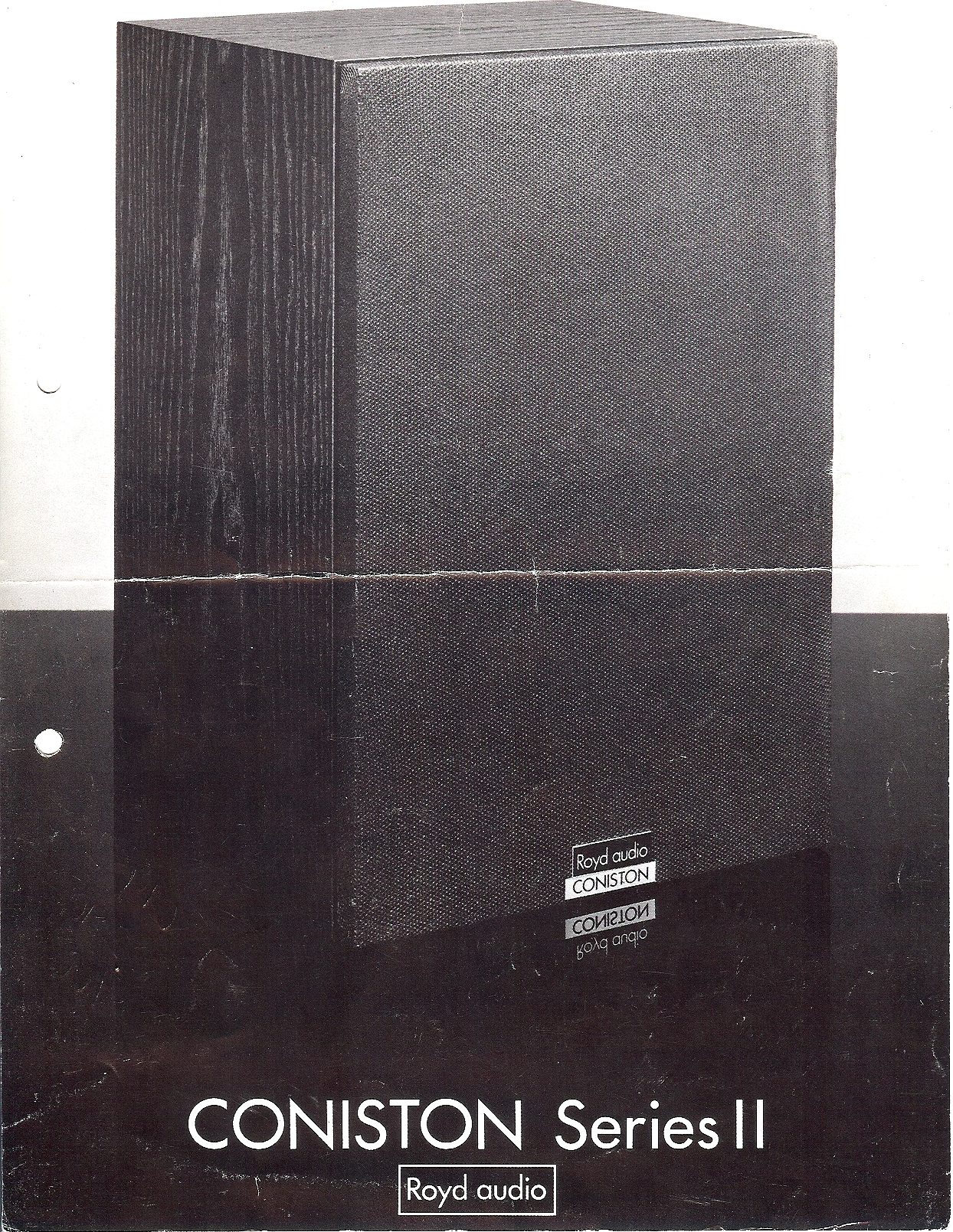

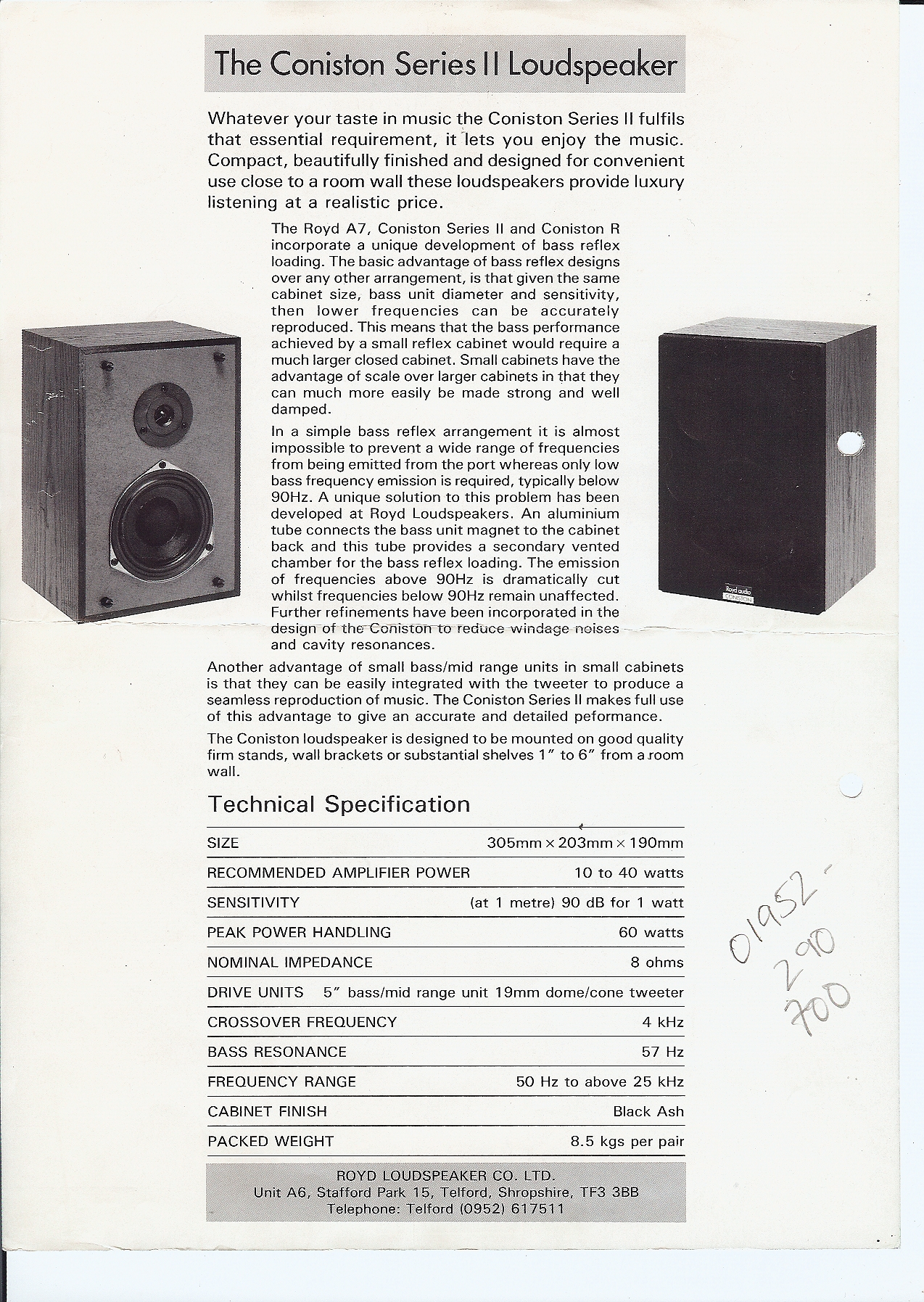

The Coniston Series II Loudspeaker
Whatever your taste in music the Coniston Series II fulfils that essential requirement, it lets you enjoy the music. Compact, beautifully finished and designed for convenient use close to a room wall these loudspeakers provide luxury listening at a realised price.

The Royd A7, Coniston Series II and Coniston R incorporate a unique development of bass reflex loading. The basic advantage of bass reflex designs over any other arrangement, is that given the same cabinet size, bass unit diameter and sensitivity, then lower frequencies can be accurately reproduced. This means that the bass performance achieved by a small reflex cabinet would require a much larger closed cabinet. Small cabinets have the advantage of scale over larger cabinets in that they can much more easily be made strong and well damped.

In a simple bass reflex arrangement is is almost impossible to prevent a wide range of frequencies from being emitted from the port whereas only low bass frequencies emission is required, typically below 90 Hz. A unique solution to this problem has been developed by Royd Loudspeakers. An aluminium tube connects the bass unit magnet to the cabinet back and this tube provides a secondary vented chamber for the bass reflex loading. The emission of frequencies above 90 Hz is dynamically cut whilst frequencies below 90 Hz remain unaffected. Further refinements have been incorporated in the design of the Coniston R to reduce the windage noises and cavity resonances.

Another advantage of the small bass/mid range units in small cabinets is that they can easily integrated with the tweeter to produce a seamless reproduction of music. The Coniston Series II makes full use of this advantage to give an accurate detailed performance.

The Coniston loudspeaker is designed to be mounted on good quality firm stands, wall brackets or substantial shelves 1″ to 6″ from a room wall.

– reproduced from literature that accompanied the speakers.

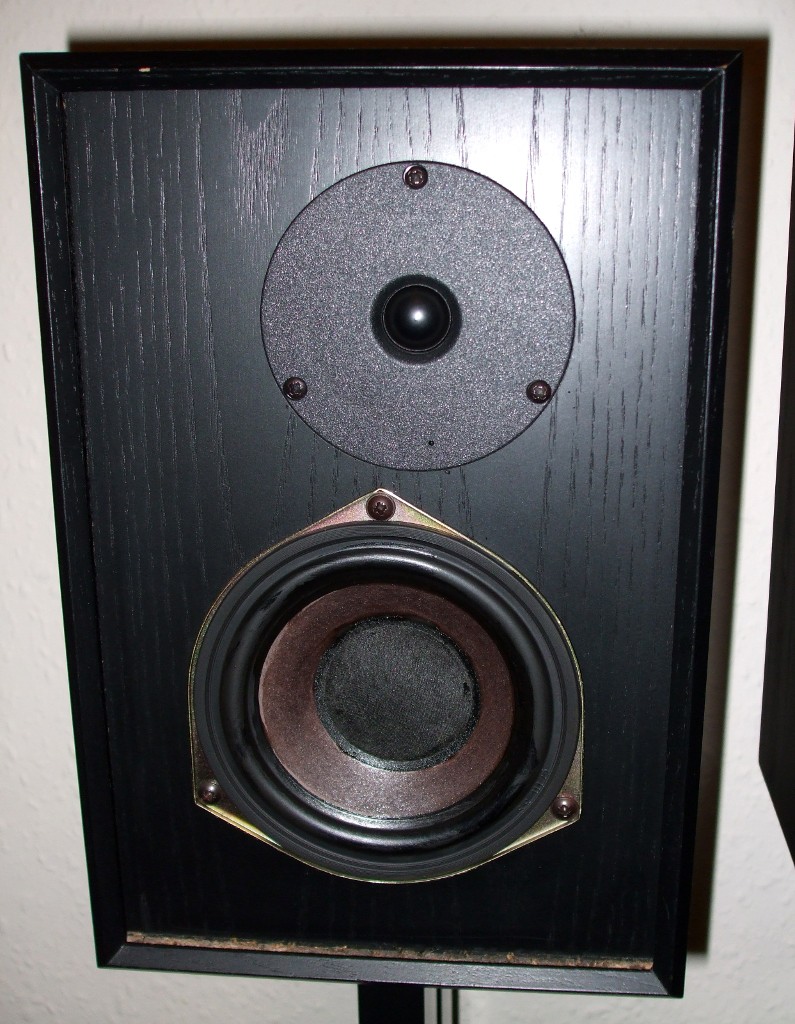

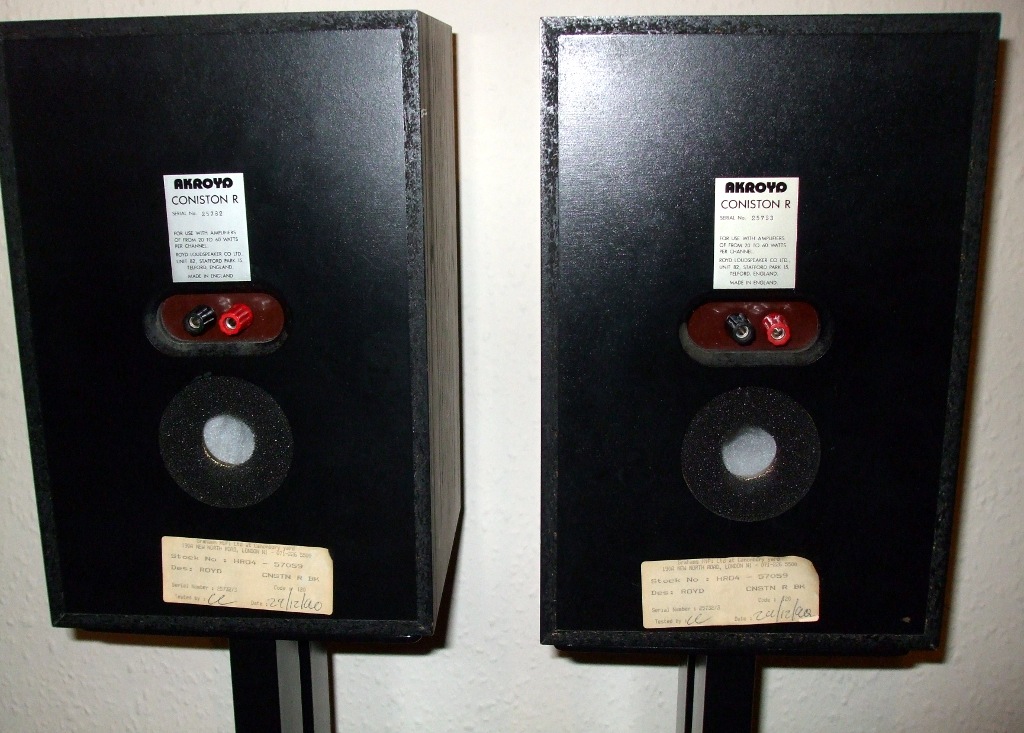

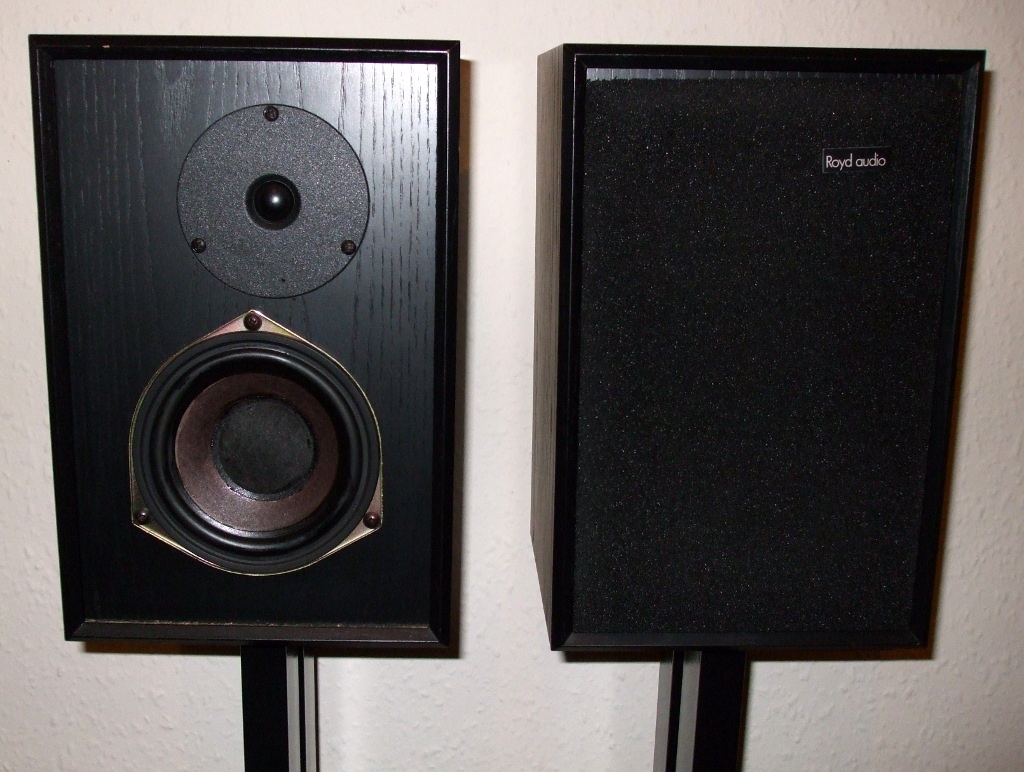

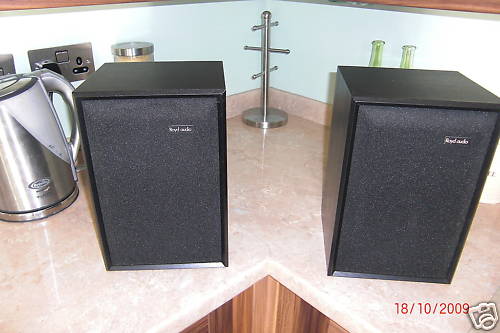

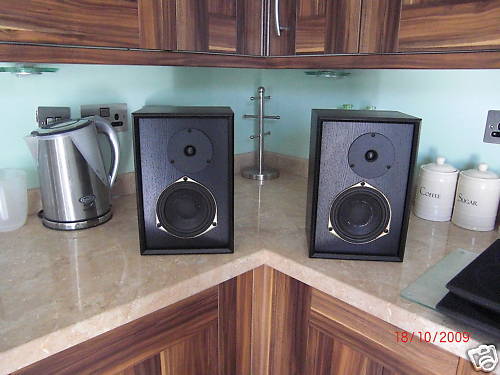

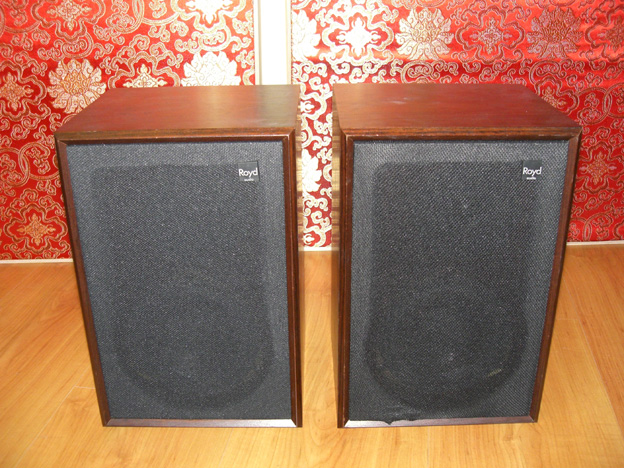

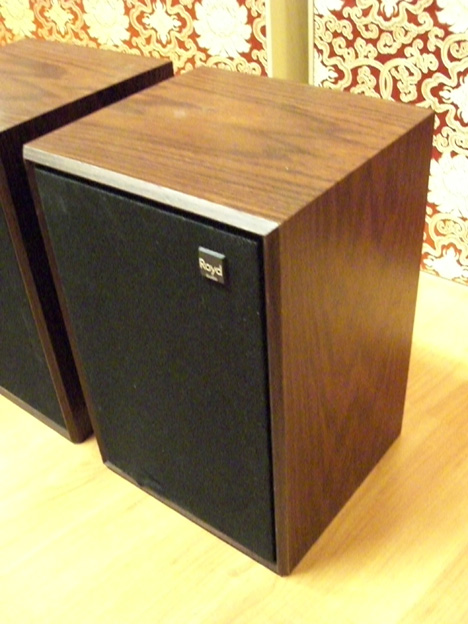

The Coniston R Loudspeaker
Whatever your taste in music the Coniston R fulfils that essential requirement, it lets you enjoy the music. Compact, beautifully finished and designed for convenient use close to a room wall these loudspeakers provide luxury listening at a realised price.

The Coniston R is a unique development of bass reflex loading. The basic advantage of bass reflex designs over any other arrangement, is that given the same cabinet size, bass unit diameter and sensitivity, then lower frequencies can be accurately reproduced. This means that the bass performance achieved by a small reflex cabinet would require a much larger closed cabinet. Small cabinets have the advantage of scale over larger cabinets and can much more easily and economically be made sound.

In a simple bass reflex arrangement is is almost impossible to prevent a wide range of frequencies from being emitted from the port whereas only low bass frequencies emission is required, typically below 90 Hz. A unique solution to this problem has been developed by Royd Loudspeakers. An aluminium tube connects the bass unit magnet to the cabinet back and this tube provides a secondary vented chamber for the bass reflex loading. The emission of frequencies above 90 Hz is dynamically cut whilst frequencies below 90 Hz remain unaffected. Further refinements have been incorporated in the design of the Coniston R to reduce the windage noises and cavity resonances.

The Coniston R loudspeaker is designed to be mounted on good quality firm stands, wall brackets or substantial shelves 1″ to 6″ from a room wall.

– reproduced from literature that accompanied the speakers.

Specifications:-

Royd Coniston (R)
Version R
Year of Release 1985
Dimensions (WxHxD) 203mm x 305mm x 190mm
Recommend Amplifier Power 10 to 40 Watts
Sensitivity 89 dB 1 watt @ 1 metre
Power Handling 50 watts
Nominal Impedance 8 ohms

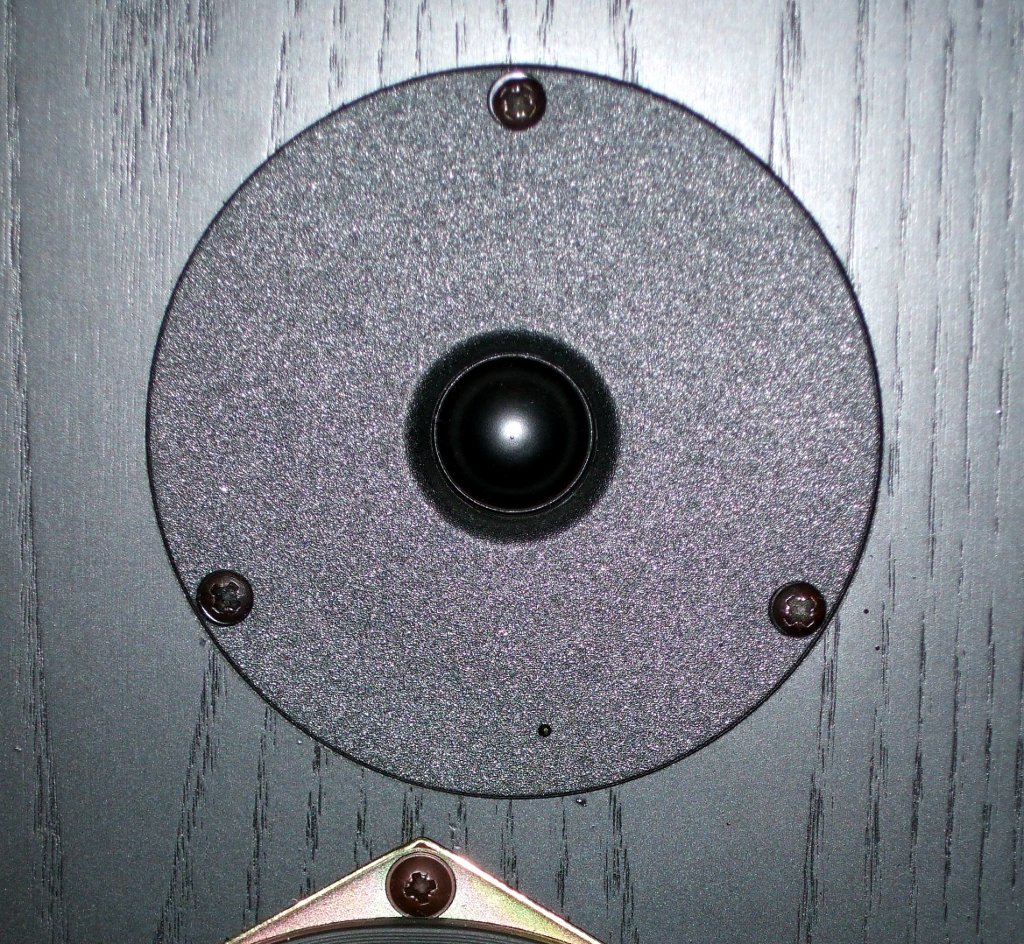

Drive Units 5" bass/mid range unit, 19mm dome tweeter
Crossover Frequency 4 KHz
Bass Resonance Frequency 57 Hz
Frequency Range 50 Hz to 22KHz
Port(s) Rear
Terminals Single
Finishes Walnut Veneer or Black Ash
Weight 9 Kg

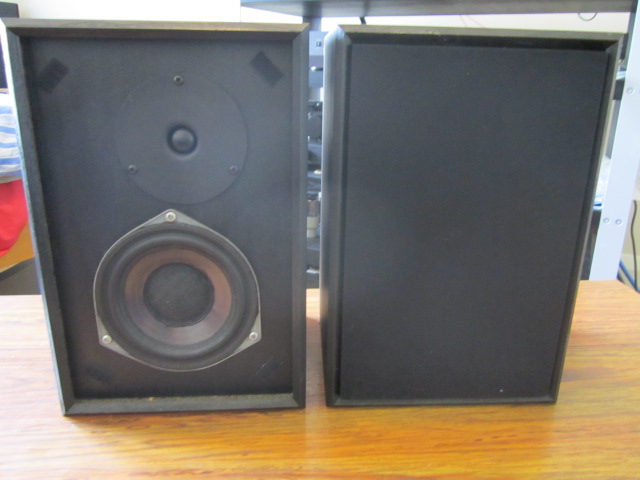

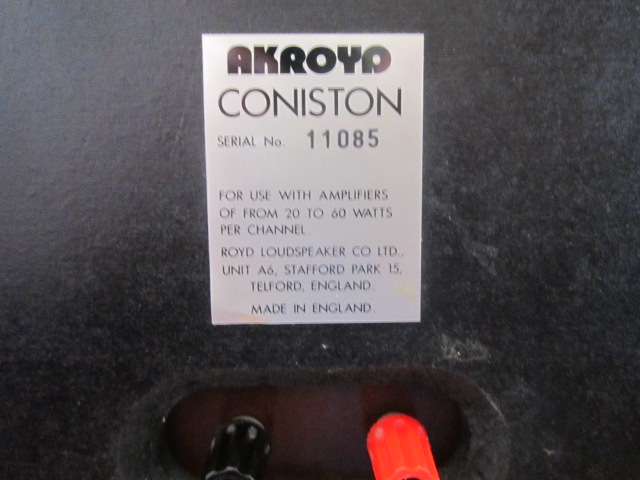

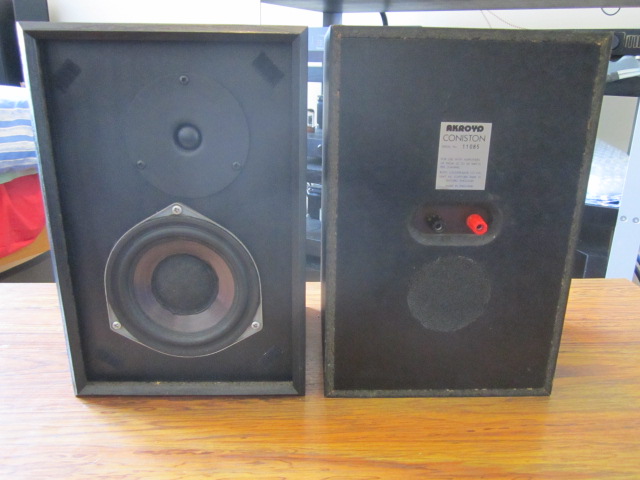

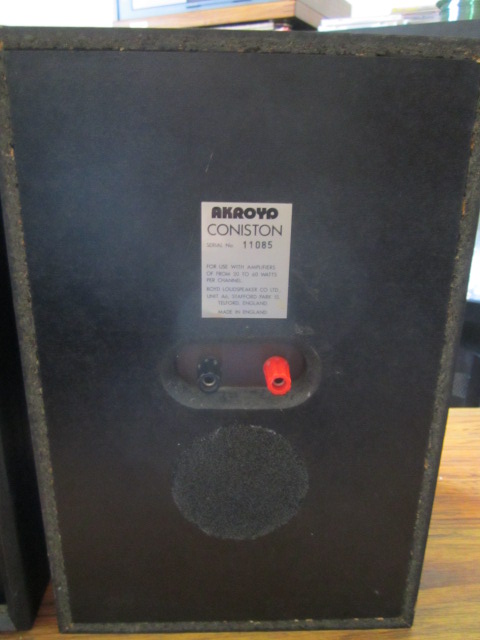

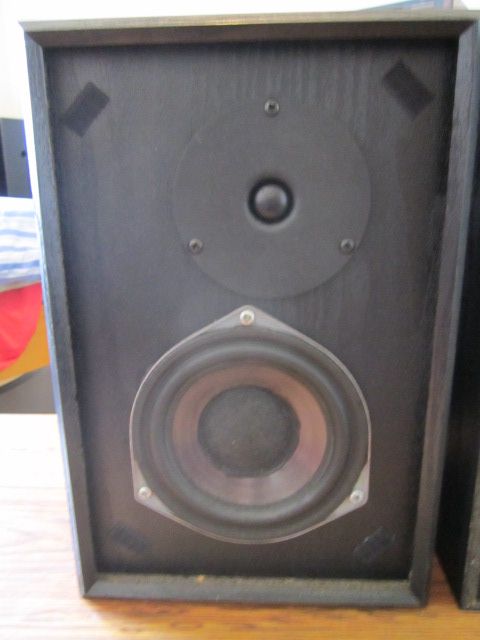

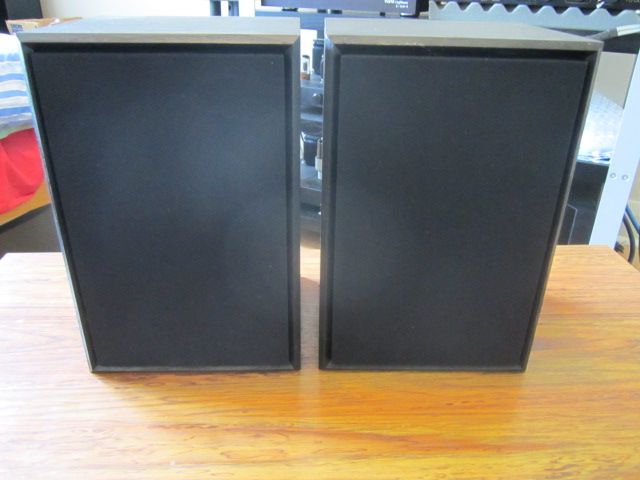

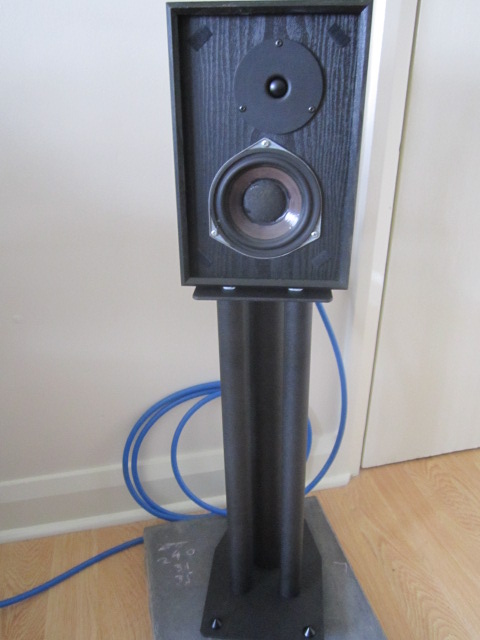

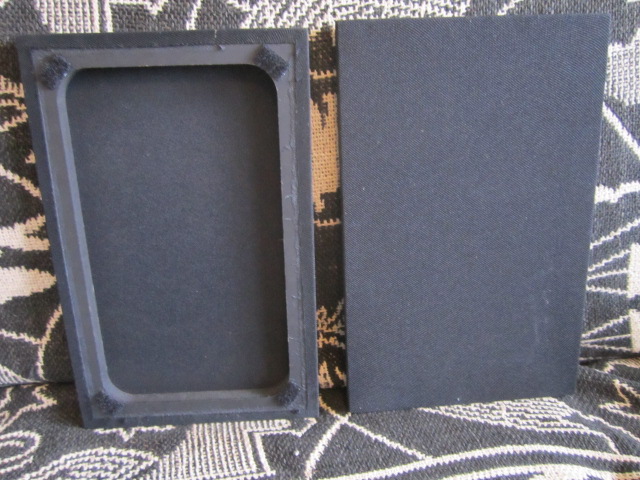

Royd Coniston (Series I)
Version Series I
Year of Release 1984
Dimensions (WxHxD)
Recommend Amplifier Power
Sensitivity
Power Handling
Nominal Impedance
Drive Units
Crossover Frequency
Bass Resonance Frequency
Frequency Range
Port(s)
Terminals
Finishes
Weight
Royd Coniston (Series II)
Version Series II
Year of Release
Dimensions (WxHxD) 203mm x 305mm x 190mm
Recommend Amplifier Power 10 to 40 Watts
Sensitivity 90 dB 1 watt @ 1 metre
Power Handling 60 watts
Nominal Impedance 8 ohms
Drive Units 5" bass/mid range unit 19mm dome/cone tweeter
Crossover Frequency 4 KHz
Bass Resonance Frequency 57 Hz
Frequency Range 50 Hz to 25KHz
Port(s) Rear
Terminals
Finishes Black Ash
Weight 8.5 Kg

Price guide: a pair in good condition went for £51 on ebay in Nov ’09.
